User-Friendly ECG Machine for Cardiac Screening for Community Health Centers and Veterinary Monitoring Devices

Product Details:

Place of Origin:	Fujian, China
Brand Name:	other
Model Number:	a059

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Power Supply Mode:	Plug-in
Material:	Plastic, Metal	Shelf Life:	3 Years
Quality Certification:	CB	Instrument Classification:	Class I
Safety Standard:	None

Product Description

Specification

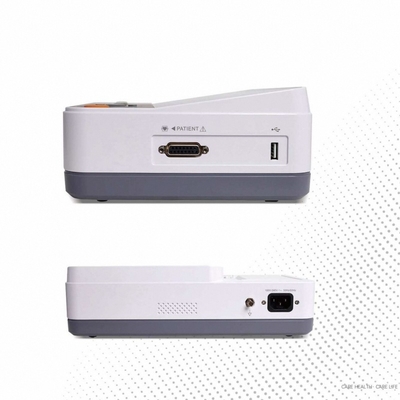

Port
Serial port/External Input & Output	×
LAN port	×
USB port	√
SD card port	×
VGA output	×
Network
Wire network	×
Wireless network	×
ECG main unit and processing
Lead	12-lead (STD)
Channel	8- CHANNEL
ECG analysis sampling rate	1k Hz
digital sampling rate	32k Hz
Acquisition/Sample mode	simultaneously 12 leads
dynamic range/measurement range	≤±5 mV pp
resolution	24 bits
frequency response	0.01Hz ~ 300Hz (-3dB)
Baseline drift filter	[0.01Hz][0.05Hz]/[0.50Hz]/[1.00Hz]/[0.15Hz]/[0.25Hz]/[0.32Hz]/[0.67Hz]
ECG Filter
EMG Filter	25Hz/35Hz/OFF
AC filter	50Hz/60Hz/OFF
Low pass filter	150Hz/100Hz/75Hz/OFF
CMRR	>123dB
Time constant	≥3.2s
AD conversion	24 bits
input impedance	≥100MΩ(1Hz)
Polarization Voltage	±950 mV ±5%
Internal noise	≤12 μVp-p
Patient leakage	NC: <10μA (AC) / <10μA (DC)/ SFC <50μA (AC) / <50μA (DC)

Company Profile

Packing & Delivery

FAQ

Q1: where is your factory?

A1: Fujian, China

Q2: what is the nearest loading port?
A2: Zhuhai, Shenzhen, Guangzhou, Chaozhou

Q3: what are your delivery terms?
A3: FOB, CIF, EXW, DDU, DDP, etc.

Q4: Can we use our own logo for packing?
A4: YES, OEM is acceptable, pls send email to for more details.

Q5: can you provide customized products?
A5: Yes, we provide one-stop customization service from drawings to molds to finished products, or lightweight customization
service As logo printing based on our off the shelf products.

Q6.What’s your delivery time/production lead time?
A6: About 15-30 days depends on the order order qty. To be discussed if customized product.
